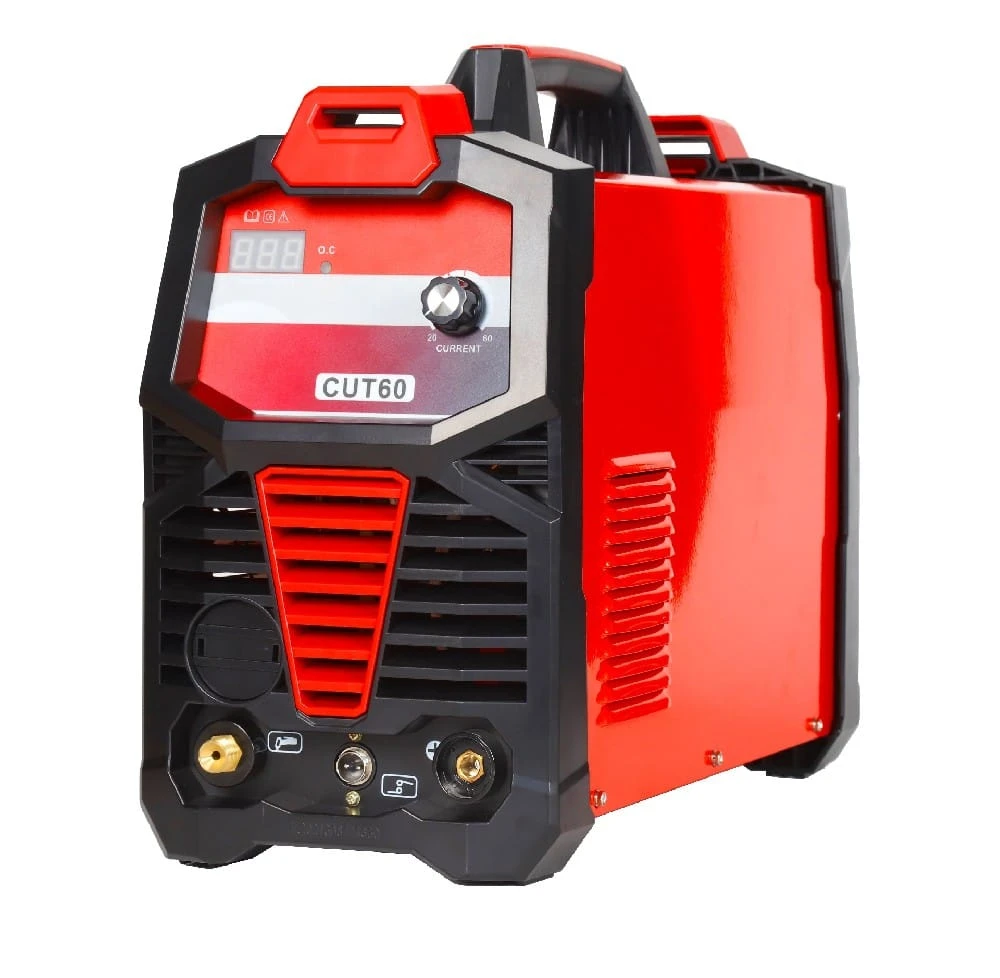

CUT60 DC Inverter Air Plasma Cutter
| Model No. | CUT-60 |
|---|---|
| InputVoltage | AC220V±15% |
| Rated power current | 35.8A |
| Input power | 7.8KVA |
| No-load Voltage | 240V |
| Output currentrange | 20-55A |
| Rated output voltage | 104.0V 55A@60% |
| Duty cycle | 43A@100% |
| No-load loss | 30W |
| Net weight | 18.5(KG) |
| Gross weight (Including Torch) | 22.5(KG) |
| Dimension of machine(W*D*H) | 500x220x395（mm） |
| Dimension of packing(W*D*H) | 575x305x435（mm） |
| Maximum cutting thickness | 18.0(mm) |
| Start mode | High frequency arc starting |
| Quality cutting thickness | 12.0(mm) |
| Optimum air pressure | 4.5-5.0(PSI) |
1. Cutting is convenient, fast and economical, and the cutting speed is 2 times higher than that of oxyacetylene.
2. Can cut stainless steel, copper, aluminum, cast iron and other metal materials.
3. The incision is smooth, the cutting precision is high, and the cutting tension and deformation are small.
4. Small size, light weight, simple operation, economical and affordable.
5. Can be widely used in petroleum, chemical industry, power construction, metallurgy, ships, boilers, pressure vessels,
Why Choose Our CUT60 IGBT Inverter Air Plasma Cutter?
1. Large LCD Display for Enhanced Operation
This CUT60 portable plasma cutte for metal is equipped with a big digital screen,and simple rotary knobs for current adjustment, easy to operate and settings clearly, suitable for both beginners and professional users.
2.110V/220V Worldwide Dual Voltage Compatibility
Supporting both 110V and 220V power inputs, this plasma cutting machine is designed for global use. Whether in Asia, Europe, Africa, or the Americas, it delivers consistent performance. This feature offers flexibility and convenience for various industrial and personal applications across different regions.
3. Pilot Arc Function for Superior Cutting Stability
Our plasma cutter 110v 220v comes with pilot arc function significantly enhances arc ignition and stability, particularly when working on mid-to-thick metal plates. This results in smoother cuts, improved precision, and reduced material waste.
4. High-Frequency Non-Contact Arc Starting
With high-frequency ignition technology, this IGBT inverter plasma cutter allows for non-contact arc starting on rough, painted, or rusted surfaces without pre-cleaning. This not only saves time and effort but also extends the lifespan of consumable parts such as nozzles and electrodes by minimizing physical contact and wear.
5. 60AMP Powerful Plamsa Cutting Capacity
Achieve clean and quick cuts on materials up to 16mm (5/8″) in thickness, and the max cutting thickness is 20mm(3/4″). This metal plasam cutting machine is widely used in metalworking projects, from light DIY tasks to heavy-duty industrial applications.
6. High-Quality AG60 Plasma Cutting Torch
The standard accessories for this CUT60 plsam cutting equipment is including the professional-grade AG60 plasma cutting torch. Its good quality ensures reliable cutting even under demanding conditions.
7. Portable and User-Friendly Design
Featuring a sturdy aluminum alloy handle, the CUT60 plasma cutting machineryis both lightweight and easy to transport between job sites. Its compact design does not compromise on power, making it an excellent choice for mobile repair shops, construction sites, and workshop use.
8. Flexible MOQ Welcome OEM&ODM Order
To accommodate different business needs, we welcome sample and small-quantity orders with a minimum order quantity (MOQ) of just 1 unit. This allows buyers to evaluate product quality and performance firsthand with minimal risk, fostering trust and long-term collaboration. We also provide packaging customization, color customization, and logo customization services.
9. Plasma Cutting Equipment More Choices for Varied Applications
We also supply a comprehensive range of plasma cutters to meet different needs, including models with built-in air compressors (LGK60-160), CNC-compatible machines (LGK80-160) supporting automated cutting, and compact portable units for home use (CUT40/50). With maximum cutting capacities ranging from 25mm to 45mm, our series provides flexible solutions for hobbyists, workshops, and industrial manufacturers.
