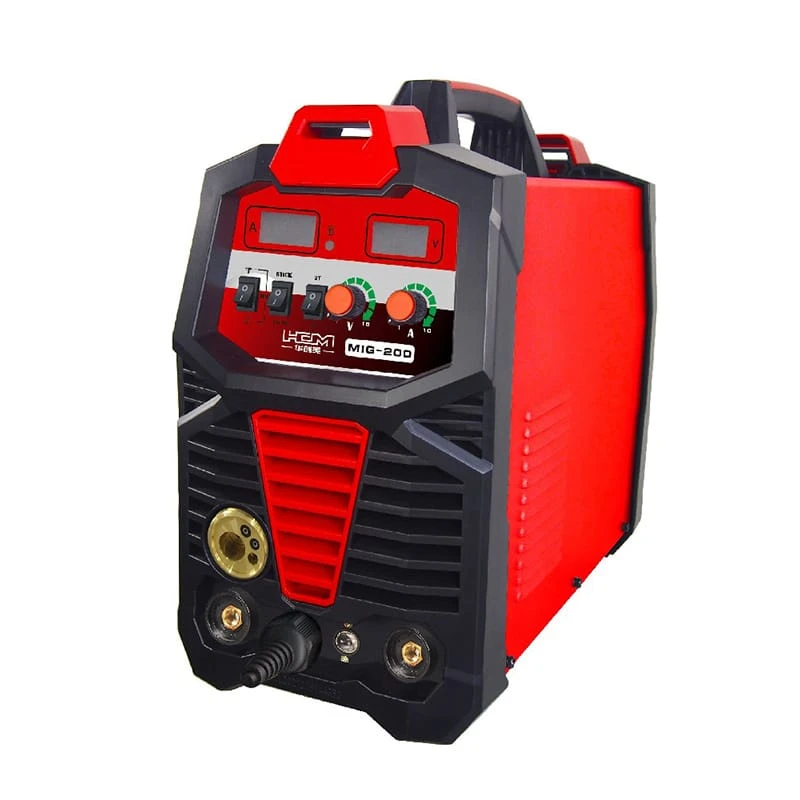

160A/200A MIG/MMA Inverter Welder
1. IGBT inverter technology, peak current mode control, reliable quality and stable performance.
2. Advanced electronic reactor control technology ensures the stability of the welding process, small spatter, deep molten pool, and good shaping.
3. It is simple to operate, economical, energy-saving, and can completely replace the tap welder.
4. Stable low-current welding, suitable for welding medium and thin plates above 0.8mm.
5. Can be widely used in petroleum, chemical industry, power construction.
| Models | MIG/MMA-160D | MIG/MMA-200D |
|---|---|---|
| Input Voltage | AC 220V ±15% | AC240V ±15% |
| Rated input power capacity | 5.9KVA | 8.0KVA |
| No-load Voltage | 55V | 55V |
| Output current range | MIG 30-160A MMA 20-140A |
MIG 30-200A MMA 20-160A |
| Output Voltage range | 15-22.0V | 15-24.0V |
| Duty cycle | 160A@35% 123A@100% |
200A@35% 155A@100% |
| No-load loss | 30W | 30W |
| Efficiency | 85% | 85% |
| Net weight | 12.0Kg | 12.0Kg |
| Gross weight (including Torch) | 18.0Kg | 18.0Kg |
| Dimension ofmachine(W*D*H) | 500x220x395(mm) | 500x220x395(mm) |
| Dimension of packing(W*D*H) | 575x305x435(mm) | 575x305x435(mm) |
| Diameter of welding wire plate | 200mm | 200mm |
| Wire diameter/Electrode diameter | Φ0.6/0.8/1.0mm | Φ0.6/0.8/1.0mm |
| Protection class | IP21S | IP21S |
